What Is ERV in HVAC?

Putting ERV Into Plain Words

If you have ever wondered what is ERV in HVAC, the short answer is this: an energy recovery ventilator is a mechanical ventilation unit that swaps tired indoor air for fresh outdoor air while reclaiming heat and humidity from the air it pushes out.

Think of an energy recovery ventilator as a translator standing between two air streams. It hands off warmth and moisture from one stream to the other so your HVAC equipment does not have to work as hard.

For airtight, well-built homes, an ERV in HVAC solves a real problem: how do you bring in fresh air without throwing away the energy you already paid to condition?

Why ERVs Matter More Than People Realize

Modern homes are sealed tightly to save energy, but that same tightness traps stale air, cooking odors, and humidity. An energy recovery ventilator keeps the air moving and the pollutants down.

On the energy side, a good ERV can hand back as much as 85% of the heat and moisture that would otherwise escape, which lightens the load on your heating and cooling system.

With ventilation now baked into many building codes, an energy recovery ventilator is often the cleanest path to staying compliant while keeping utility bills sensible.

What Is an Energy Recovery Ventilator?

How It Actually Works

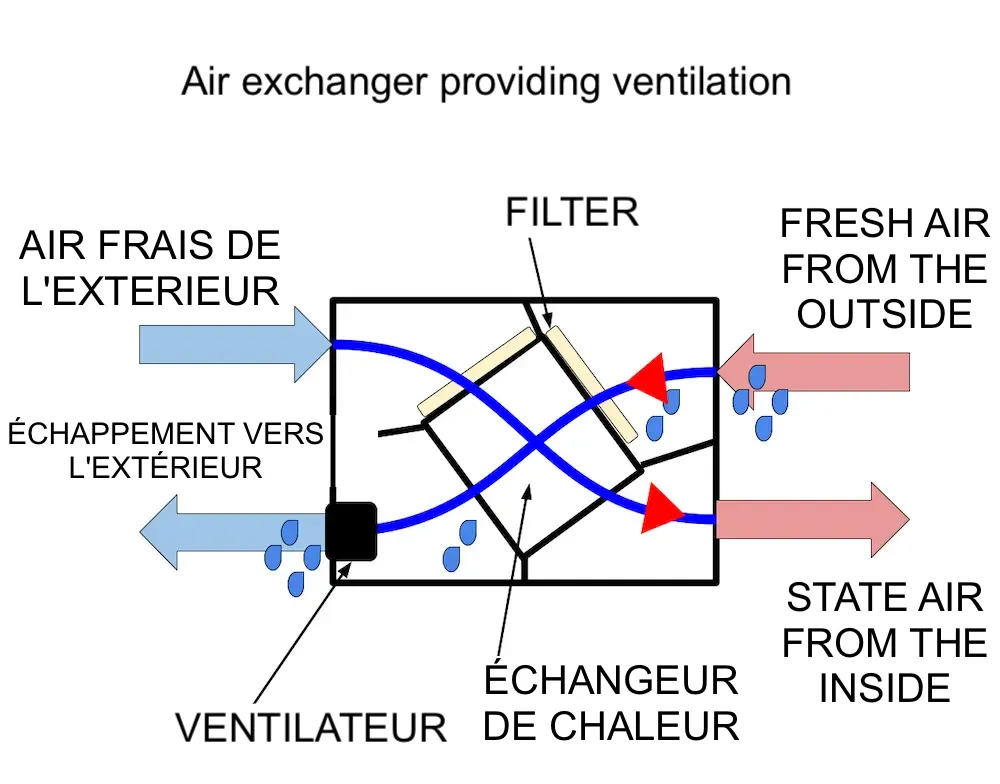

What is an energy recovery ventilator, mechanically speaking? It is a box with a clever core that lets two opposing air streams pass close enough to trade heat and humidity without ever mixing.

That core, usually an enthalpy wheel or a membrane plate, is the heart of the unit. It is what separates an ERV from a simple exhaust fan.

In muggy weather, this moisture exchange is gold. It tempers the dampness of incoming air, which helps fend off mold and keeps rooms feeling fresh rather than clammy.

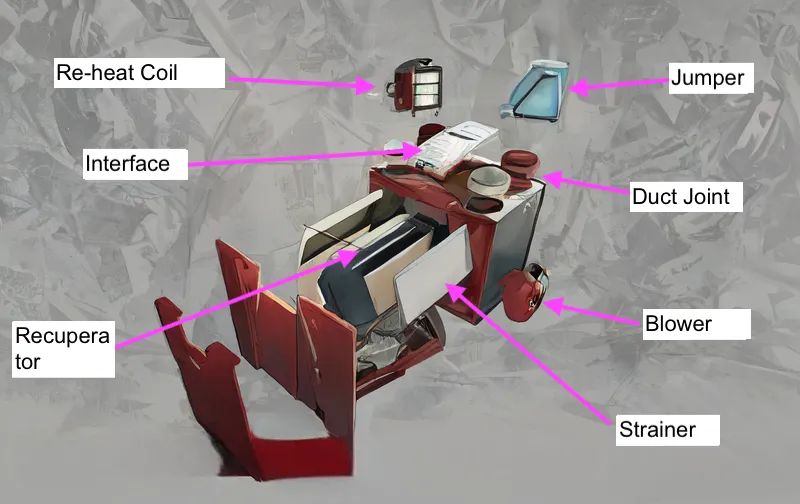

The Parts Inside the Box

The exchange core is component number one, transferring warmth and moisture between the two streams while keeping them physically apart.

Two dedicated fans handle the heavy lifting, one pulling fresh air in and one pushing stale air out through separate duct runs for steady, balanced flow.

Filters round things out, trapping dust, pollen, and grit before they reach the core or your living space.

• Aim for a unit with a sensible recovery efficiency (SRE) at or above 80%.
• Pick HEPA or MERV 13 filtration if anyone in the home has allergies.
• Favor quiet models, ideally under 1.5 sones, so you barely notice it running.
• Confirm ENERGY STAR status to qualify for rebates.
• Keep up with regular maintenance so the core stays clean.

What Is Energy Recovery Ventilation?

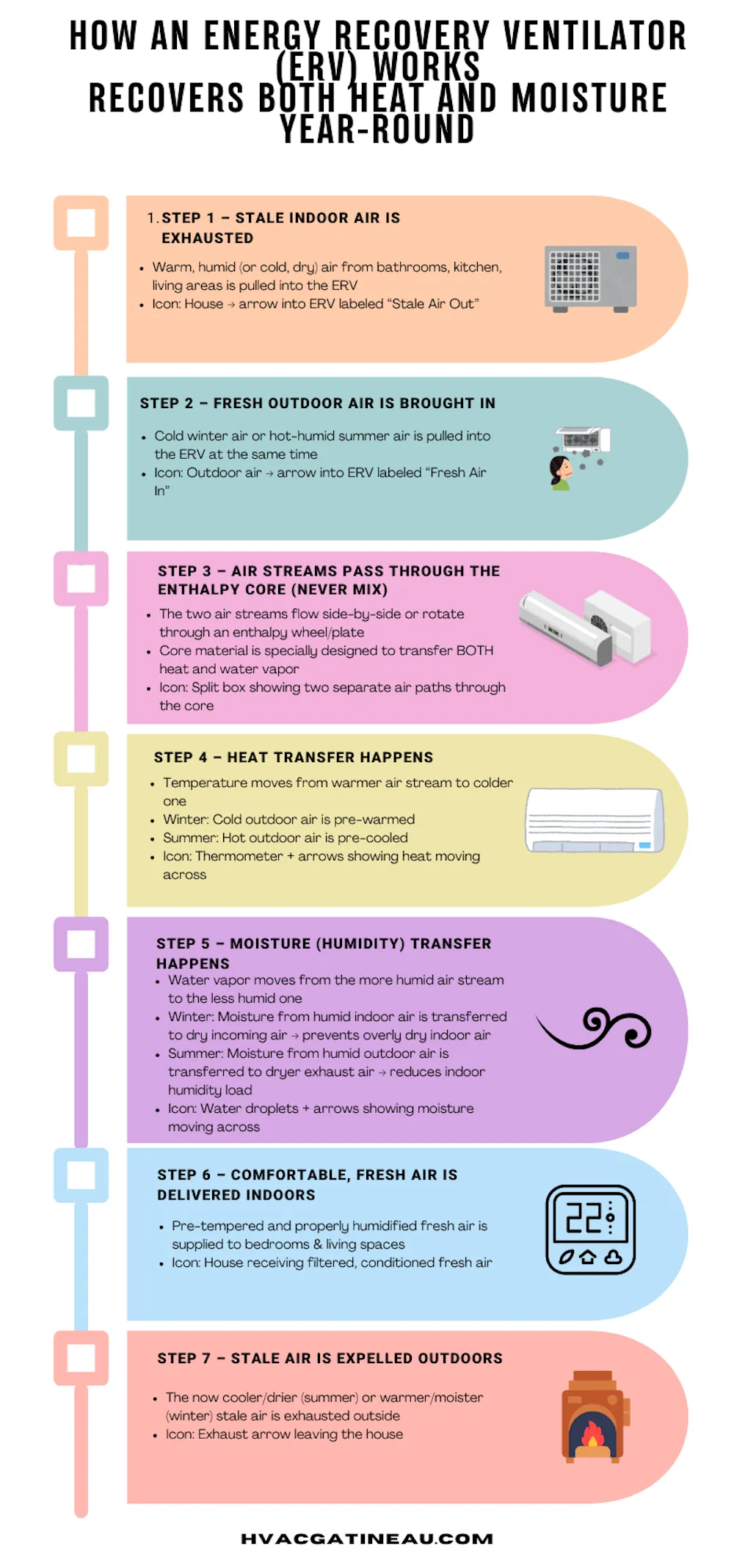

The Process, Step by Step

What is energy recovery ventilation? It is the continuous trade of indoor and outdoor air, paired with the recapture of heat and moisture so very little conditioned energy goes to waste.

As fresh air enters, the core preconditions it, meaning your furnace or air conditioner has far less correcting to do.

By steering humidity in the right direction, energy recovery ventilation keeps rooms from turning damp in summer or bone-dry in winter.

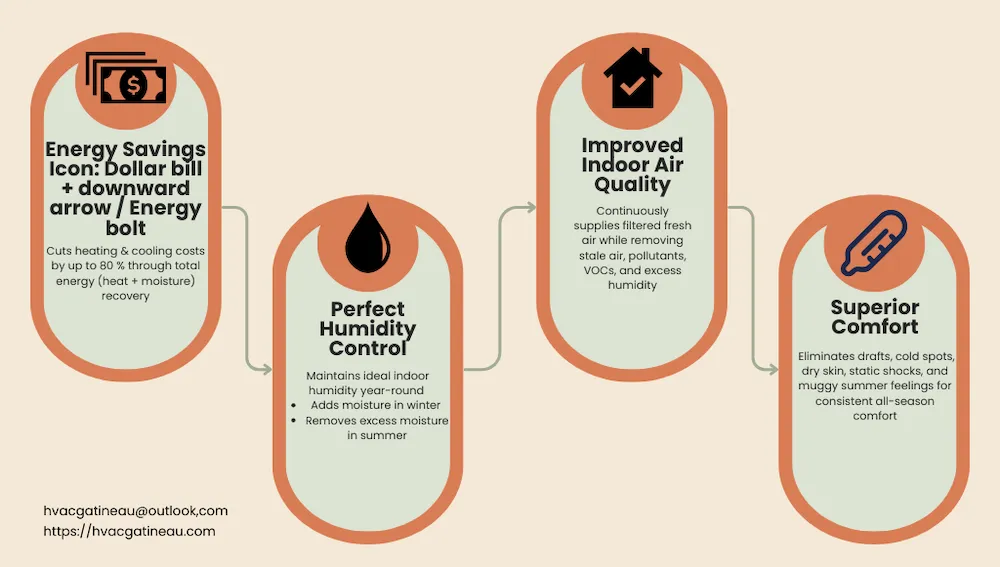

What You Gain

Cleaner indoor air comes first, with lower CO2, fewer VOCs, and reduced allergens, a real benefit for sensitive lungs.

Recovery rates reaching 90% mean an ERV can trim 15 to 20% off heating and cooling costs versus basic ventilation.

And the humidity management is exactly what tightly sealed homes need to dodge condensation problems.

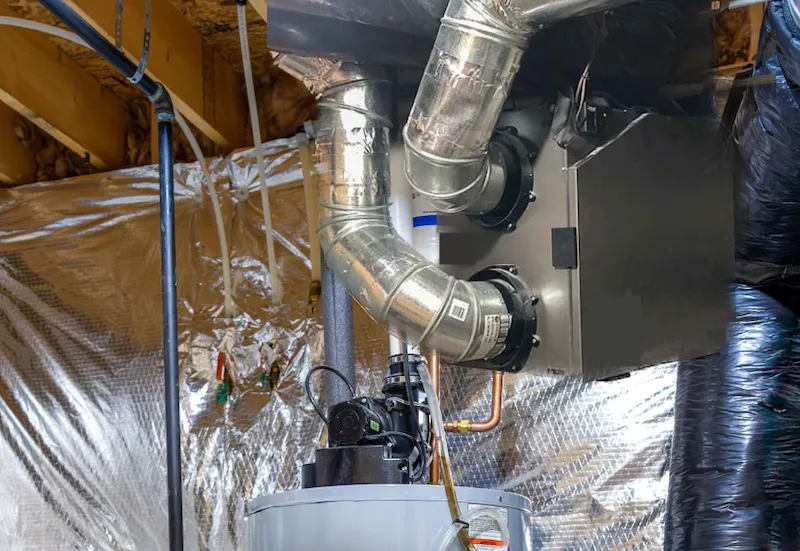

What Is a Heat Recovery Ventilator?

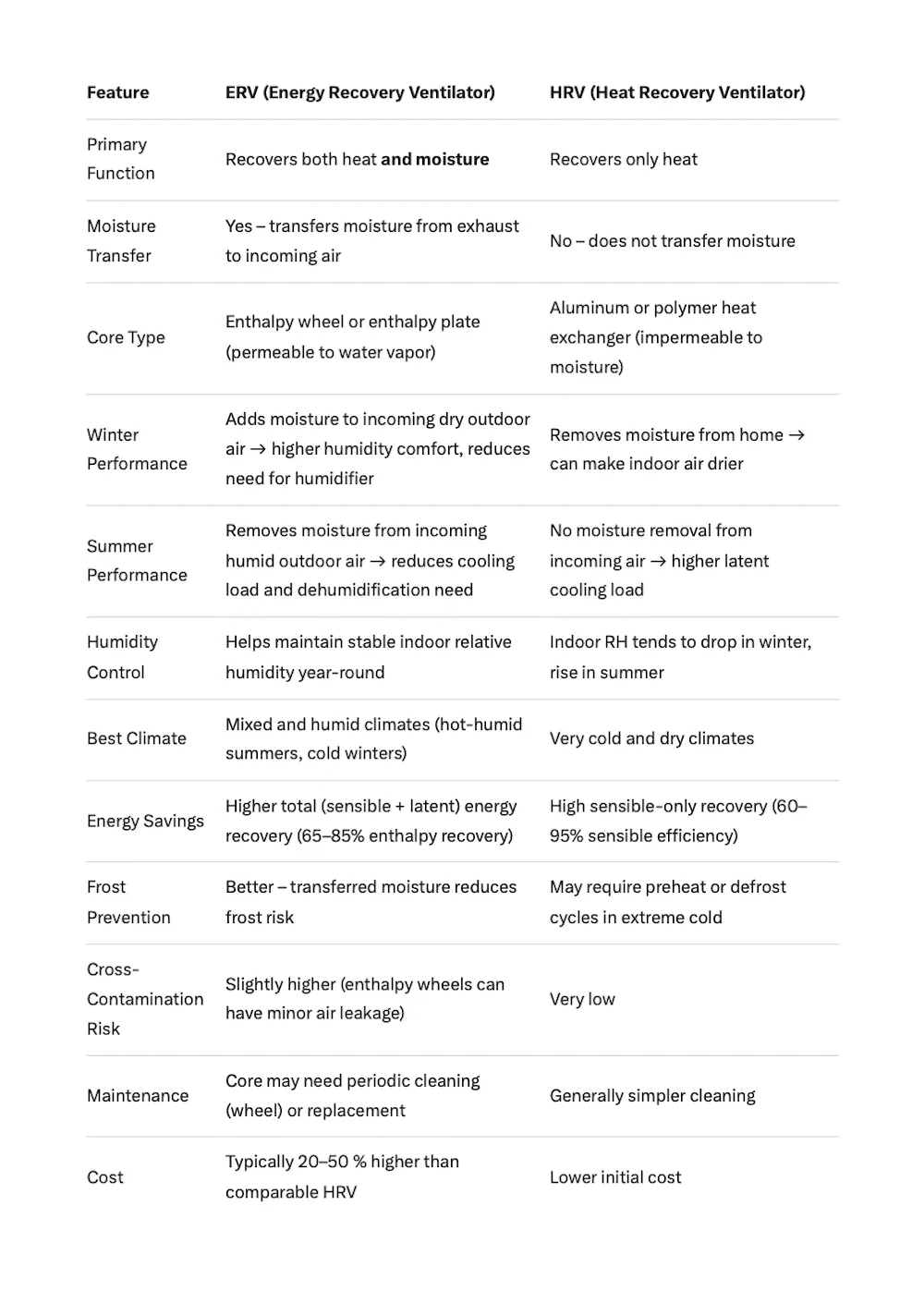

ERV Versus HRV

What is a heat recovery ventilator? An HRV moves heat between air streams but leaves moisture alone, which makes it a better match for dry climates than an energy recovery ventilator.

An HRV shines in cold, arid regions where extra indoor humidity is welcome, while an ERV is the smarter pick where summers run humid.

Deciding between the two really comes down to your local climate and how much moisture control you actually want.

What an HRV Does

What does a heat recovery ventilator do? It swaps stale indoor air for fresh outdoor air and recovers heat in the process, a strong fit for cold winters.

Because it skips moisture transfer, an HRV can leave winter air a touch drier, but that trade-off simplifies operation in frigid zones.

It still cuts heating costs by reclaiming warmth, making it a useful counterpart to an ERV depending on where you live.

What Is a ERV?

The Core Idea

What is a ERV? It is a ventilation system that recovers both heat and humidity, striking a balance between fresh air and energy savings in homes or commercial spaces.

It is especially handy in humid settings, holding indoor humidity in that comfortable 30 to 50% band and discouraging mold.

Within today's HVAC systems, an ERV quietly supports sustainability by lowering energy use while satisfying ventilation requirements.

Where ERVs Get Used

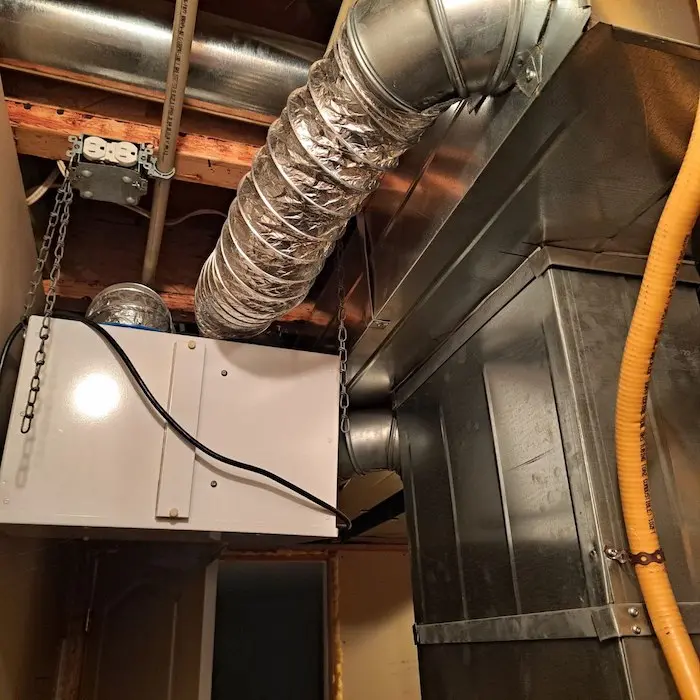

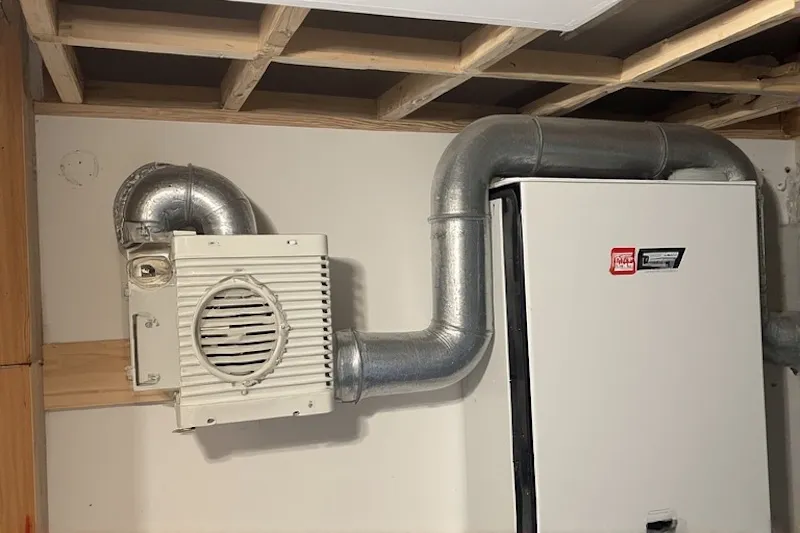

In the Home

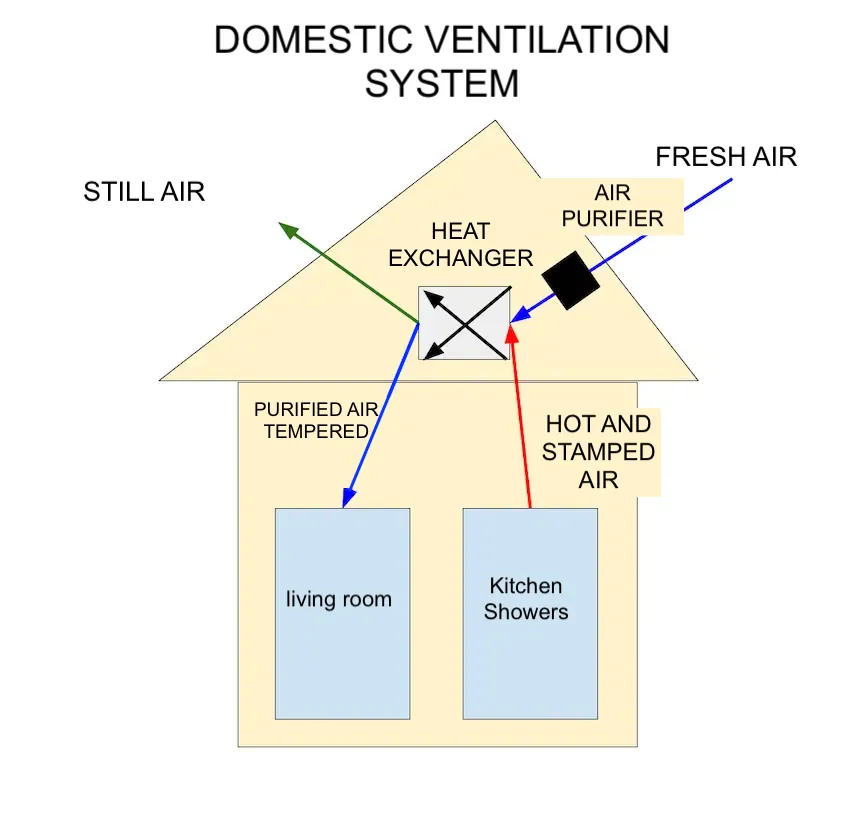

An energy recovery ventilator is a natural fit for energy-efficient houses, where tight construction would otherwise let stale air linger.

Paired with HEPA filters, an ERV clears fine particles from the air, which can be a relief for allergy-prone families.

Given the wet summers and dry winters around the Eastern Townships, an energy recovery ventilator keeps both ventilation and humidity in check all year.

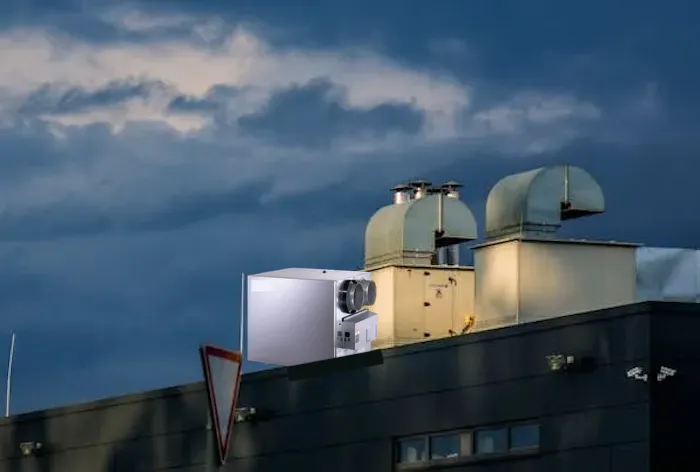

In Commercial Spaces

Offices use ERVs to keep staff supplied with fresh air, easing sick-building complaints while keeping energy spending in line.

Gyms and restaurants lean on them to wrangle humidity and odors without burning through energy.

Industrial sites turn to energy recovery ventilators to meet ventilation rules while clawing back energy in busy, crowded buildings.

Picking the Right ERV

Models Worth Knowing

The Panasonic Intelli-Balance 100 is a standout, reaching up to 93% heat recovery and running quietly at around 0.8 sones.

Venmar's AVS E15 brings rugged enthalpy cores and smart controls, well suited to our cold-and-humid Quebec swings.

Fantech's SER line earns its keep on humidity control, a smart option for damp or coastal conditions.

How to Choose

Match the unit's airflow capacity, roughly 50 to 200 CFM, to your home's size so it ventilates without straining.

Look for both sensible and latent recovery efficiencies above 80%, plus low noise for everyday comfort.

And insist on a solid warranty, ideally five years on the core and two on parts, to safeguard the purchase.

Installation and Upkeep

Get It Installed Right

An energy recovery ventilator should be set up by a certified professional who can dial in ductwork, balance the airflow, and meet local code.

Sloppy installation invites leaks and lost efficiency, which quietly inflate your bills.

Expect installation to land somewhere between $2,000 and $5,000 depending on home size and duct complexity.

Keeping It Healthy

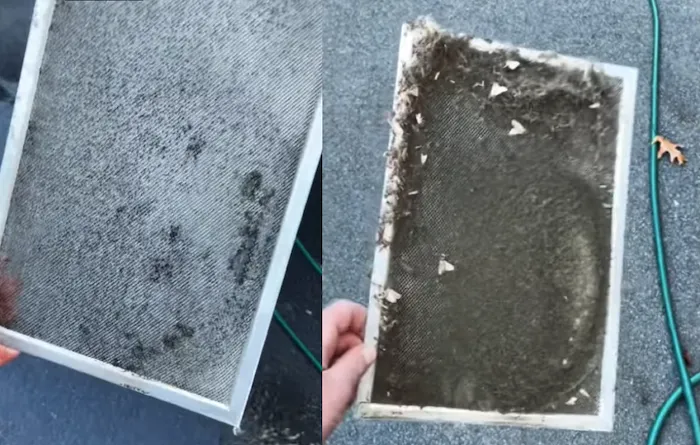

Swap or wash the filters every three to six months to keep airflow strong and dust at bay.

Once a year, check the core and rinse it gently to preserve heat and moisture transfer.

Book professional maintenance every two to three years to inspect fans, ducts, and controls, usually $100 to $200 per visit.

How ERVs Handle Climate

In Humid Weather

An energy recovery ventilator is at its best in humid air, shedding moisture from incoming air to keep mold away.

During summer, it lightens the burden on your air conditioner by drying the fresh air before it ever hits your living space.

Units like Fantech's SER series keep energy recovery ventilation steady where humidity stays stubbornly high.

In the Cold

In winter, an ERV stops humidity from piling up in sealed homes while still recovering heat for savings.

Some ERVs add a preheater to keep the core from freezing when temperatures plunge below zero.

The result is indoor humidity holding around 30 to 50%, sidestepping that uncomfortable dry-air feeling.

Cost and Rebates

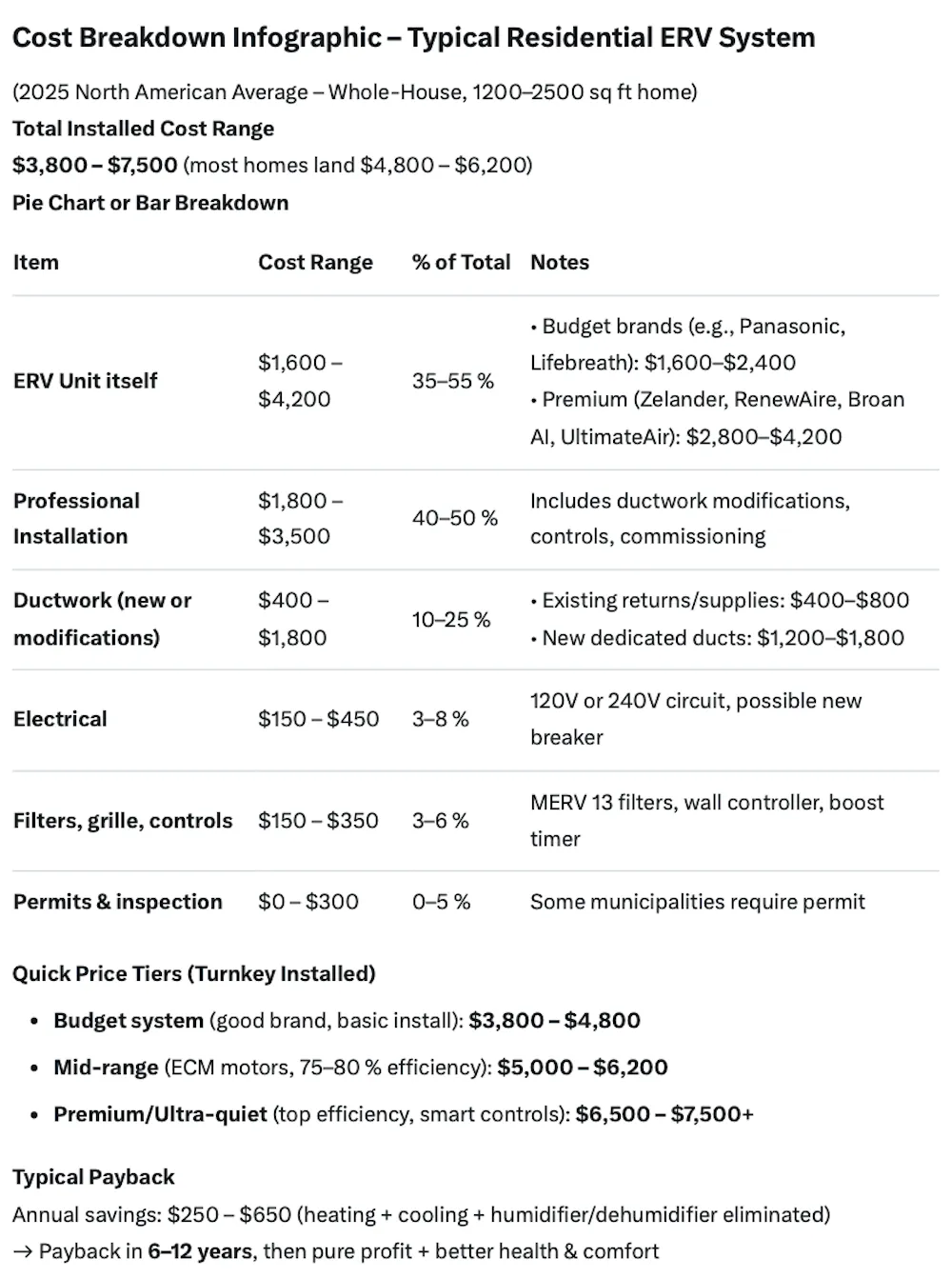

What It Costs

The unit itself usually runs $1,500 to $4,000, with installation adding $2,000 to $5,000 based on complexity.

Efficient models like the Intelli-Balance can pay themselves back within five to seven years through lower energy use.

Ongoing upkeep is modest, typically $100 to $200 a year for filters and servicing.

Money Back on the Table

In Canada, Hydro-Quebec offers rebates of up to $1,000 on an ENERGY STAR-certified energy recovery ventilator.

In the U.S., federal tax credits have covered 30% of an ERV's cost, up to $600, under the Inflation Reduction Act.

Local utility programs sometimes layer on extra incentives, so it pays to ask your provider before you buy.

Conclusion: The Case for an ERV

Why It Is Worth It

Knowing what is an ERV in HVAC shows just how much one unit can do: cleaner air, lower bills, and steadier humidity.

For both homes and businesses, an energy recovery ventilator bundles health, comfort, and efficiency into a single piece of equipment.

Choose a quality unit and keep it maintained, and you will enjoy a healthier, more efficient home for many years.

Maximize Your Home's Comfort with Sherbrooke's HVAC Expert

Unlock the full potential of your home's climate control. Expert installation and diligent maintenance of your HVAC system are the most effective ways to enhance comfort, reduce energy costs, and prevent unexpected breakdowns.

For Sherbrooke homeowners seeking this advantage, Climatisation Sherbrooke delivers. Start the conversation today by calling +1 (819) 481 1235 or emailing climatisationsherbrooke@outlook.com .

From system upgrades to precision tune-ups, they provide tailored solutions. Taking the first step is easy—secure your preferred appointment time through their digital scheduling platform. For a complete overview of their benefits and to obtain a no-obligation quote, visit their website: https://climatisationsherbrooke.com .

Need Professional Help?

If your ERV system in your HVAC setup is not ventilating properly or seems inefficient, our certified technicians are ready to diagnose and resolve the problem. Discover our air exchanger installation, repair, and maintenance services in Sherbrooke.
